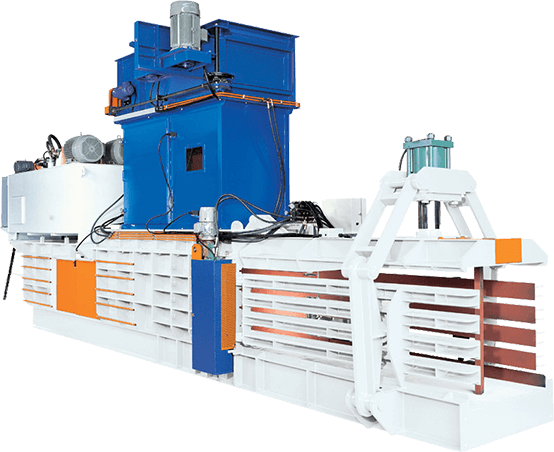

GB-Series Automatic Baling Press
| Type | GB-0505F | |
| Main Cylinder | φ125 × 900st | |
| Horsepower | 10 HP | 20 HP |
| 7.5 K.W | 15 K.W | |
| Feed Opening Dimensions (mm) | 625 × 460 | |
| Bale Chamber(mm) | 500 × 500 × 900 | |
| Bale Dimensions(mm) | 500 × 500 × 600 | |
| Bale Density (O.C.C) | 450~500 (kg/ m3) | |
| Max.tdrust Force | 21 Ton (170kg / cm2) | |
| Cycle Time (Unload) | 13.8 sec | 6.4 sec |
| Production (40~60 kg/ m3) | 1~1.5 TPH | 1.7~2.2 TPH |
| Number of Ties | 3 | |
| Wire Size (mm) | φ2.4~2.7 (㎜) | |
| Oil Reservoir | 280 L | 500 L |
| Machine Weight | 3 Ton | 3.5 Ton |
※Bale length is adjustable
※Specificationsand design may be changed without prior notice.
